Alice Springs (YBAS)

Airspace

AS ADC is responsible for the Class D airspace in the AS CTR SFC to A045, as well as the Class C airspace from A045 to A065.

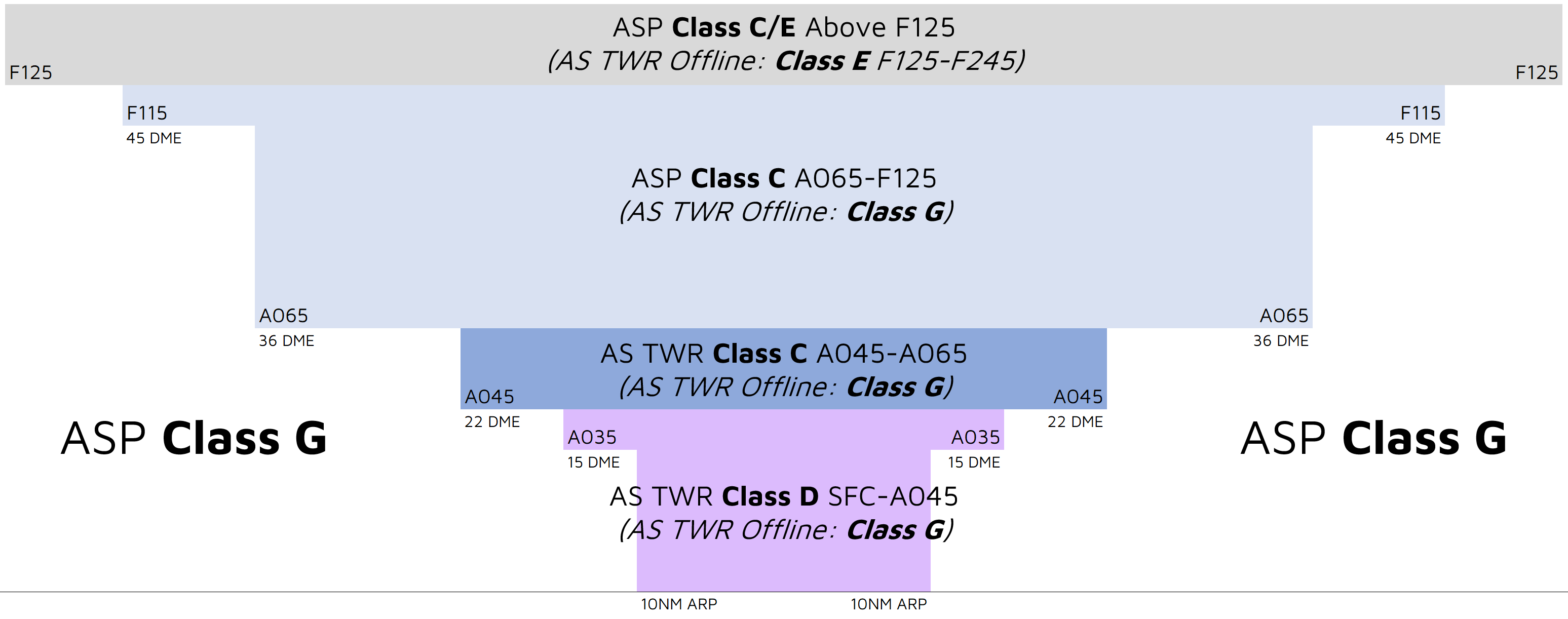

AS ADC Airspace

Tower Closed Proceedures

When AS ADC is closed, the Class C & D airspace from SFC to F125 is reclassified as Class G.

Departures

VFR aircraft should expect to depart via a visual departure, on track to their first tracking point or in accordance with a VFR Route.

IFR aircraft should expect to be issued with a SID as per below:

Aircraft Type	Runway	First Waypoint	SID
All	All	DESET	DESET SID
All	All	DIGLA	DIGLA SID
All	All	ELLOW	ELLOW SID
All	All	GAFER	GAFER SID
All	All	HONGI	HONGI SID
All	All	IDANU	IDANU SID
All	All	KALUG	KALUG SID
All	All	LUGSA	LUGSA SID
All	All	MATMA	MATMA SID
All	All	PULOL	PULOL SID
All	All	PUMAK	PUMAK SID
All	All	RUPUS	RUPUS SID
All	All	SADEL	SADEL SID
All	All	SOTMI	SOTMI SID
All	All	TNK	TNK SID
All	All	TUMSO	TUMSO SID

All other aircraft shall expect to depart via a pilot-managed IFR departure or visual departure.

Arrivals

An ILS approach is available to RWY 12. RNP, RNP(AR), and VOR approaches are available to RWY 12 and 30. An NDB approach is available to the circling area.

IFR aircraft can expect to be processed direct to the IAF for the most suitable (or requested) approach.

VFR Routes

Alice Springs has 10 VFR routes that follow prominent geographic features and highways. These established routes begin at various reporting points, providing entry to the circuit area. VFR Routes 8 and 9 provide separation from R215 Pine Gap.

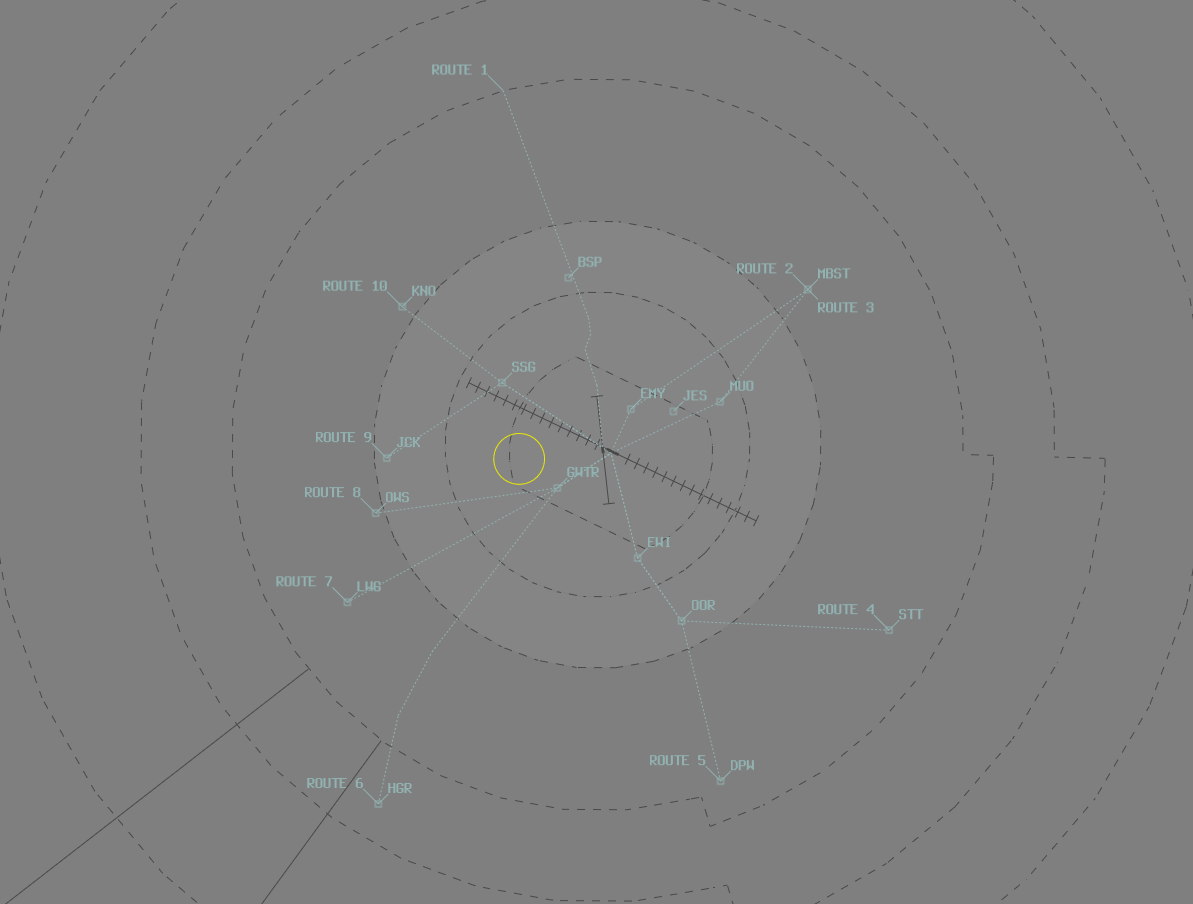

YBAS VFR Routes

Phraseology

SDA: "Alice Tower, Cirrus SDA, DPW, A065, inbound, received Juliet, request clearance"
AS ADC: "SDA, Alice Tower, cleared to YBAS via VFR Route 5, maintain A065"
SDA: "Cleared to YBAS via VFR Route 5, maintain A065, SDA"

Tip

You can find details of all VFR Routes on the Alice Springs / Uluru VTC.
